Apr 14, 2026, 04:08 PM Last Edit: Apr 14, 2026, 04:21 PM by Ron Sutton
If you click on any document below, it will open in Post Images.

Once you're in Post Images, you can ...
* Download the document from there.
* Zoom in by Clicking the Zoom button.
* Or, click on the document again, it will zoom to full size on your screen.
* Once the document is full size, you can print it from there as well, by pressing CTRL & P at the same time.

Please pay attention to the part #s in the upper right box of each form. They are different.

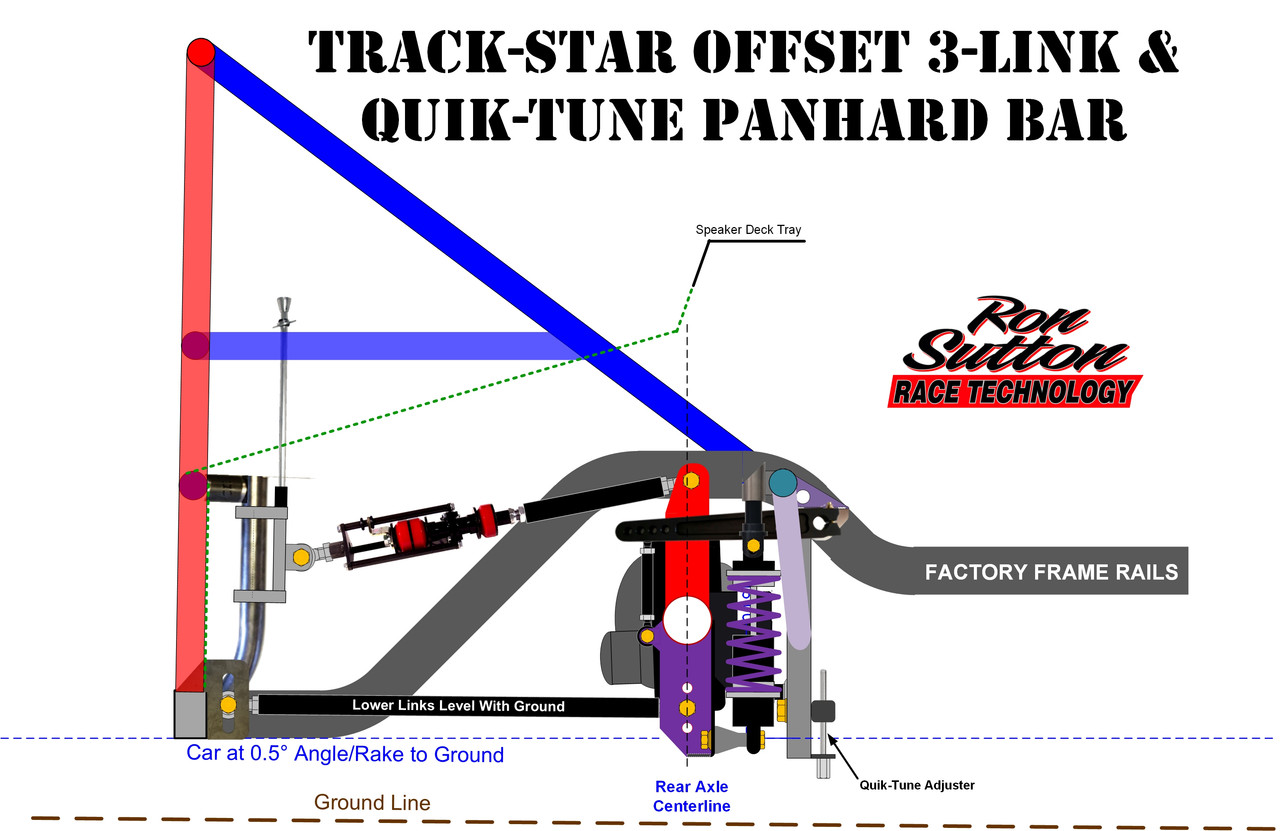

When Assembled, the J-Bar & Quik-Tune Adjuster should look like this illustration:

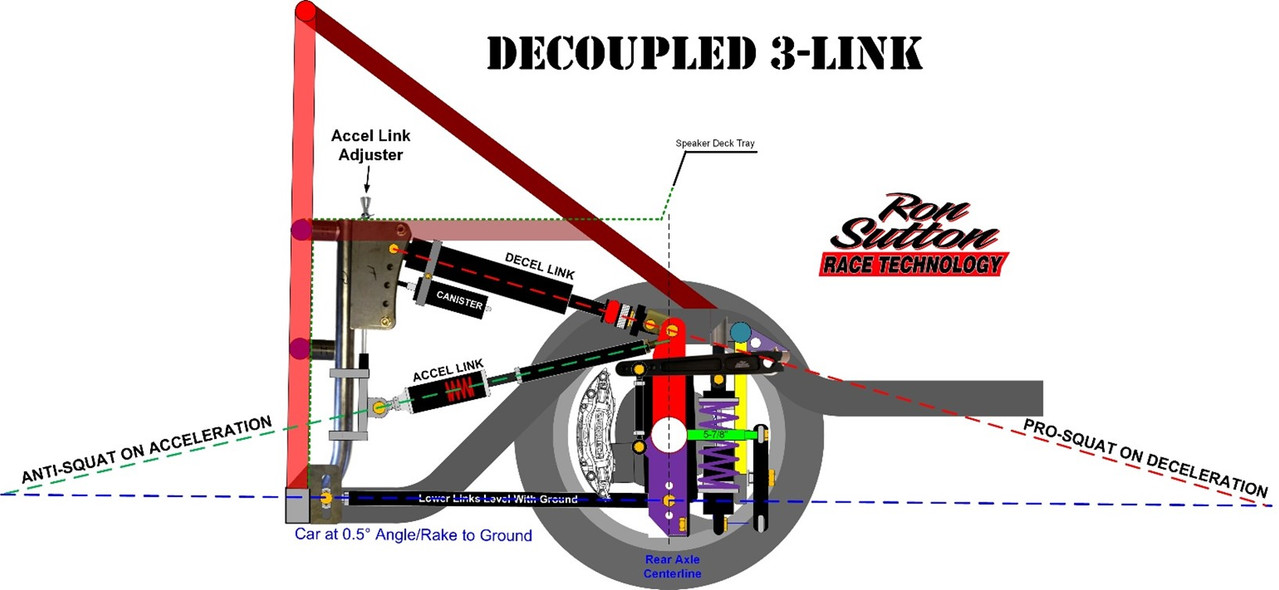

* UNLESS, you want to run the J-Bar full length for a Decoupled 3-Link. Then it should look like the second illustration below:
